Ceiling Suspension System

Our Merlin Global Ceiling suspension system are flat T-grids made from high quality Hot-dip galvanised and painted steel strip. Our high-quality T-grids are manufactured by applying advanced technology and rolling and cold blending process. It is used in condole supports, building decoration materials.

Add asthetics & consistency to your ceilings with Merlin Global T-Grid Systems.

Types

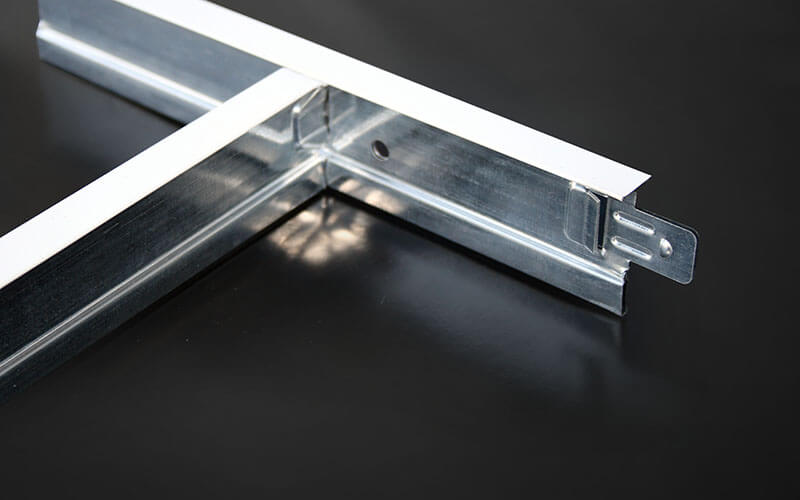

15mm Grid

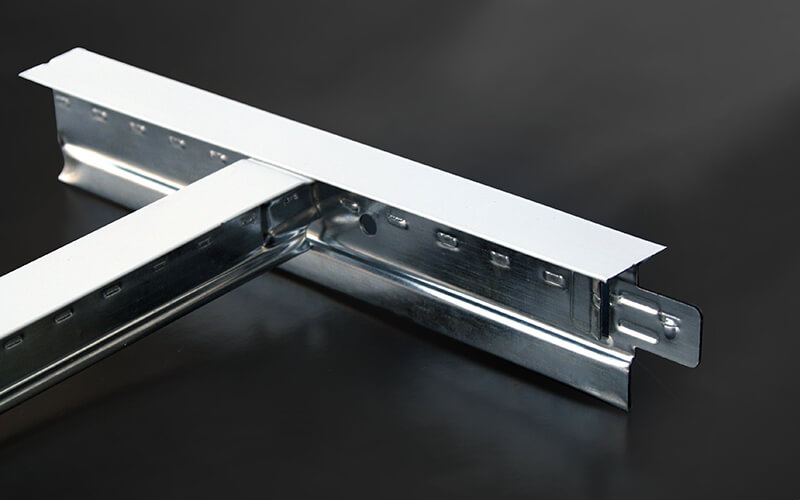

24mm Grid

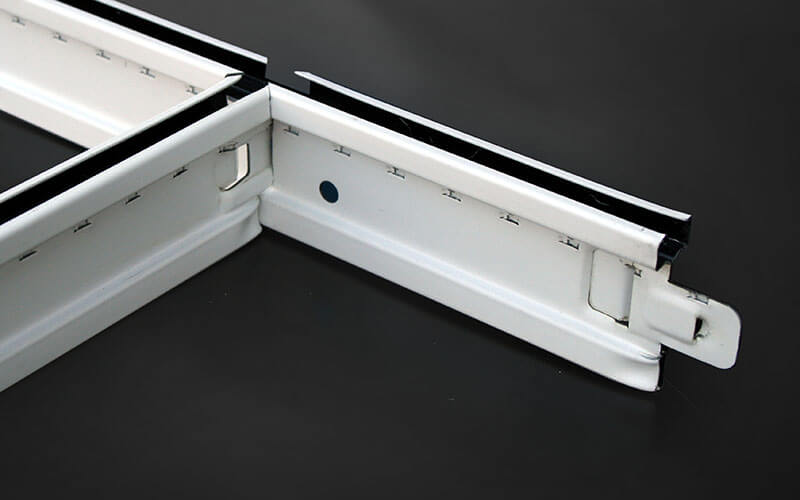

Silhouette Grid

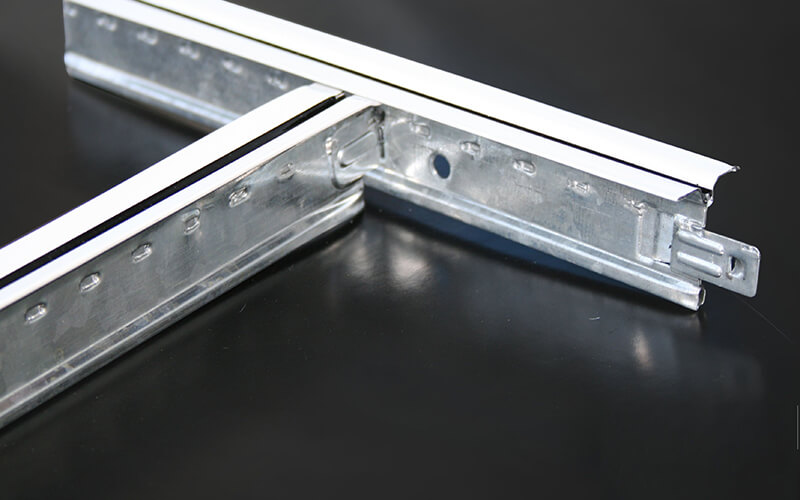

Sleek Grid

Installation Steps

Step 1: Determine the requirement ceiling level, mark the position and fix wall angle on the wall
Step 2: Hang main tee with T-bar suspension hook
Step 3: Insert cross tee to the main tee
Step 4: Cross tee adjacent to wall angle light fittings
Step 5: Adjust the levels and alignments throughout the entire grid system accurately
Step 6: Install PVC gypsum ceiling tile or other materials ceiling panel

Advantages

High grade galvanized steel as main material, non-deforming, fadeless, moisture proof and anti-corrosive
Strong close fitting, high symmetry
High load capacity
Easy and fast installation, save installing time and labor cost

Technical Details

	15 x 32 mm	24 x 32 mm	24 x 38 mm
Plain Grid	Main T – 15 × 32 × 3600 mm Cross 4' – 15 × 32 × 1200 mm Cross 2' – 15 × 32 × 600 mm Wall Angle – 20 × 20 × 3000 mm	Main T – 24 × 32 × 3600 mm Cross 4' – 24 × 26 × 1200 mm Cross 2' – 24 × 26 × 600 mm Wall Angle – 24 × 24 × 3000 mm	Main T – 24 × 38 × 3600 mm Cross 4' – 24 × 28 × 1200 mm Cross 2' – 24 × 28 × 600 mm Wall Angle – 24 × 24 × 3000 mm
Sleek Grid	Main T – 15 × 32 × 3600 mm Cross 4' – 15 × 32 × 1200 mm Cross 2' – 15 × 32 × 600 mm Wall Angle – 24 × 24 × 3000 mm
Silhouette Grid	Main T – 15 × 32 × 3600 mm Cross 4' – 15 × 32 × 1200 mm Cross 2' – 15 × 32 × 600 mm Wall Angle – 24 × 24 × 3000 mm
